Learning goals

• Understanding the concept of container orchestration
• Understanding the basic architecture of Kubernetes
• Being able to operate a Kubernetes cluster
  • Applying changes using manifest files
• Being able to manipulate Kubernetes resources
  • Pods
  • Controllers: ReplicaSets, Deployments, Services
  • Organising applications: Labels, Selectors
• Deploying a multi-tier application on a Kubernetes cluster

Deployment (r)evolution

Source: https://kubernetes.io/docs/concepts/overview/

Why are containers so popular?

• CI/CD: easy to switch to previous versions (= images)
• decouple application from infrastructure
• environmental consistency: runs the same on your pc as in the cloud
• resource isolation: predictable application performance
• resource utilization: high efficiency and density
• …

Requirements for containers in production

• Scalability & availability
• Resiliency
• Dependencies between containers
  • Load balancer
  • Database/persistent storage
• Multi-host container
• Rolling updates/rollbacks
• …

It’s complicated!

Container orchestration

= tool that allows container management at scale

• Apache Mesos
• Docker Swarm
• Rancher
• Nomad
• Kubernetes - has become “market leader”

Kubernetes by Google

Kubernetes (k8s) is an open source project that enables software teams of all sizes, from a small startup to a Fortune 100 company, to automate deploying, scaling, and managing applications on a group or cluster of server machines.

These applications can include everything from internal-facing web applications like a content management system, to marquee web properties like Gmail, to big data processing.

– Jo Beda (Google)

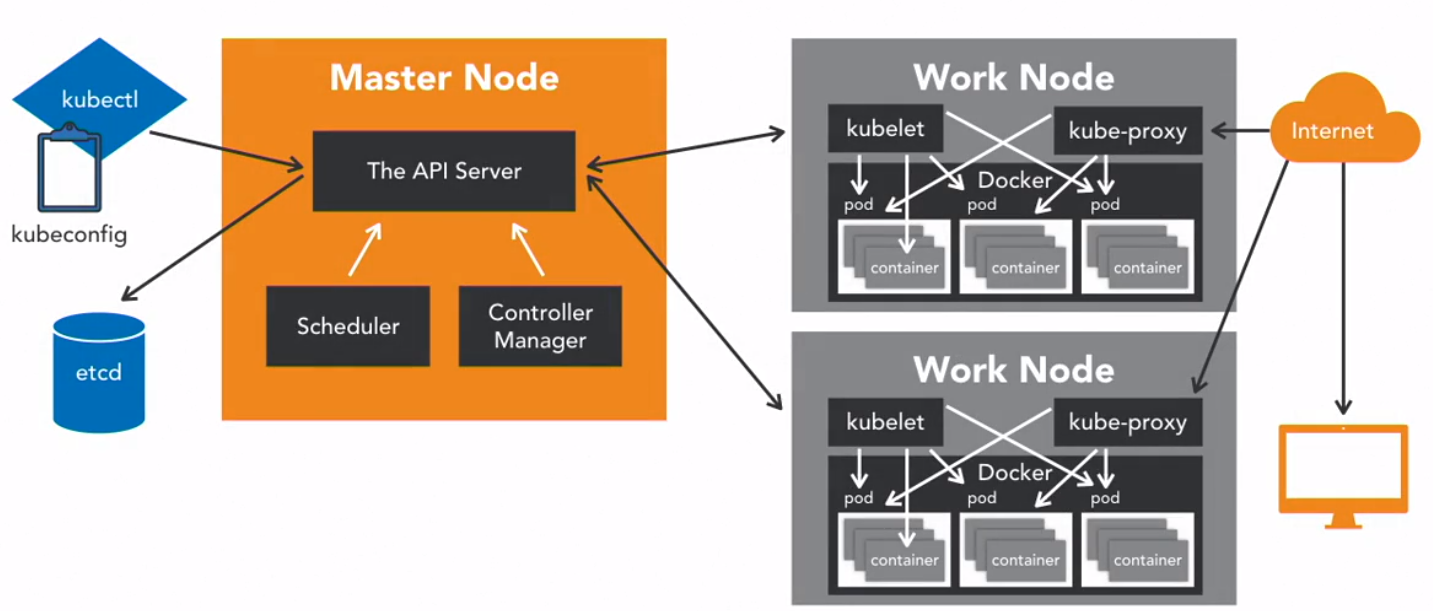

Kubernetes architecture

“Management node”

• Sysadmin interacts with Master Node through kubectl
  • compare with ansible, ansible-playbook commands!
• Settings (host name, credentials, etc): kubeconfig
  • compare with Ansible inventory file!

Master Node

• API server
• Scheduler
• Controller Manager
  • Node controller: responsible for worker states
  • Replication controller: maintain correct number of pods for replicated controllers
  • Endpoint controller: join services & pods
  • Service account & token controller: access mgmt
• etcd: key/value store, e.g. scheduling info, node details

Worker node

• kubelet: communicate with Master Node
• Run workloads
  • Container Engine (e.g. Docker, Podman)
  • Pods: smallest unit, tightly coupled containers
• Mount volumes
• Network routing (kube-proxy)
• …

Basic building blocks

• Pods
• Controllers:
  • Deployments, ReplicaSets, Services
  • DaemonSets, Jobs
• Organise applications:
  • Labels, Selectors, Namespaces

Pods

• Smallest unit of deployment
• (Docker) App container(s)
• Storage resources
• Unique network IP
• Options that govern how container(s) should run

Pods properties

• Ephemeral, disposable
• Never self-heal, not restarted by scheduler by itself
• Never create pods just by themselves
• Pro-tip: don’t use pods directly, but controllers like a deployment

Pod states

• Pending - k8s accepted Pod but no containers created
• Running - node assigned, all containers are created and at least one is running
• Succeeded - all containers exited with status 0
• Failed - all containers exited, at least one with exit status != 0
• CrashLoopBackOff - container fails to start, k8s tries over and over

Controllers

• Running applications in controllers has some benefits:
  • Application reliabilty
  • Scaling
  • Load balancing

Controllers: ReplicaSets

• Ensure specified number of replicas for a pod are running
• Used within a Deployment

Controllers: Deployments

• Declarative updates for pods & ReplicaSets
• Desired state in YAML file, k8s will bring pods to that state

Controllers: Services

• Allow communication between sets of deployments
• Important: provides fixed ip, even if pod ip changes
• Kinds:
  • Internal: IP only reachable within cluster
  • External: endpoint available throug ip:port (called NodePort)
  • Load Balancer: expose app to internet with LB

Controllers: Jobs

• Supervisor process for pods carrying out batch jobs
• Individual processes that run once and complete successfully
• Compare with cron job

Controllers: DaemonSets

• Ensure that all nodes run a copy of a specific pod
• E.g. when adding/removing nodes to the cluster
• E.g. run single logging/monitoring agent on each node

Organising applications: labels

• key/value pairs, attached to objects (pods, services, deployments)
• e.g. "environment": "prod", "tier": "backend", etc.

Organising applications: Selectors

• identify set of objects, depending on label values
• kinds:
  • equality-based: value = or !=
  • set-based: value in, not in, specific set, or value exists

Organising applications: namespaces

• isolate different groups of resources on the same hardware
• manage access control for different users
• default namespace is used when cluster is started

Beware of the golden hammer

Beware!

• Kubernetes is not a fit for every use case!
  • Overkill for simple applications
• Running k8s on-prem is hard!
  • Cloud providers offer k8s as a service
• Only microservices architecture!
  • Not suitable for “monolithic” applications
• Team organisation
  • DevOps!
  • CI/CD!

Get started with the lab assignment

• Install minikube on your physical system
  • Use VirtualBox or Docker as the driver
• Install kubectl
• Start minikube
  • Install metrics server and dashboard plugins
• Optionally, add one or two extra nodes
• Remark: Minikube is not a production-grade cluster!
  • No way to expose services to the outside world
  • Instead: minikube service <service-name>

Follow instructions in the lab assignment

• Also keep a cheat sheet of important commands!
