Learning goals

• Understanding the concept of cfg mgmt systems
  • declarative, idempotent
  • advantages over scripting
• Setting up network services with Ansible
  • applying basic concepts: playbooks, variables, modules, roles
  • writing playbooks
  • using existing roles

What’s wrong with scripting?

dnf install -y httpd
systemctl enable --now httpd
firewall-cmd --add-service http --permanent
firewall-cmd --add-service https --permanent
firewall-cmd --reload

Adding a user

adduser admin

Run this script twice:

$ sudo ./setup-server.sh
$ sudo ./setup-server.sh
useradd: user 'admin' already exists

What about…

• small changes between hosts?
• maintaining config files?
• maintaining a large Bash code base?
• configuration drift?

Bash doesn’t scale!

Enter configuration management

• 1993: CFEngine by Mark Burgess
• Declarative
• Idempotent

Declarative

• Describe the desired state of the system
  • DSL, existing language
• Cfg mgmt system brings system to desired state
  • independent of initial state
  • in one pass
  • abort on fail

Example: CFEngine DSL

Domain Specific Language (DSL)

body common control {
    bundlesequence => { "install_packages" };
    inputs => { "libraries/cfengine_stdlib.cf" };
}

bundle agent install_packages {
    vars:
        "desired_packages"
            slist => { "httpd", "mod_ssl" };
    packages:
        "$(desired_packages)"
            package_policy => "add",
            package_method => generic;
}

Example: Puppet manifest (DSL)

package { 'httpd':
  ensure => installed,
}

service { 'httpd':
  ensure => running,
}

Example: Chef recipe (Ruby)

packages = ["httpd", "mod_ssl"]

packages.each do |pkg|
  package pkg do
    action: install
  end
end

service "httpd" do
  action [:start, :enable]
end

Example: Ansible playbook (YAML)

- hosts: srv001
  vars:
    packages:
      - httpd
      - mod_ssl
  tasks:
    - name: Ensure packages are installed
      package:
        name: "{{ packages }}"
        state: installed
    - name: Ensure the service is running
      service:
        name: httpd
        state: started
        enabled: true

Idempotence

• Single pass
• End state is guaranteed
  • or run aborted!
• Only necessary changes

Advantages

• Easier to reuse
• Readable
• Scaleable
• Config file templates
• Manage configuration drift
• Cfg mgmt = disaster recovery plan!

Recommendation

• Manage your entire infrastructure using a config management system
• Use revision control system!
• Never make manual changes to a production system!

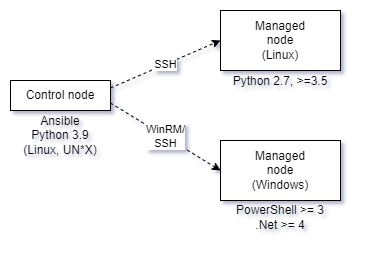

Ansible control/managed nodes

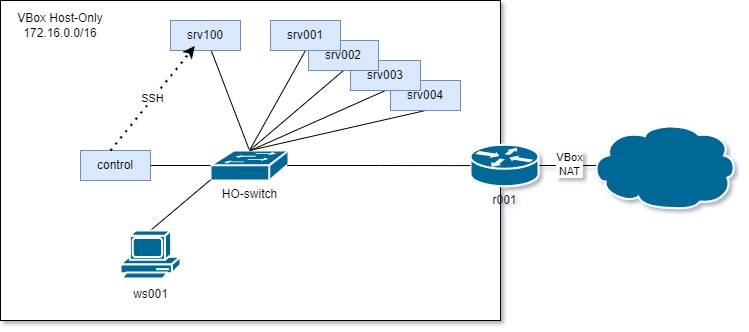

Lab assignment setup

vmlab environment

> cd infra-labs-23-34-USERNAME/vmlab
> vagrant up control
> vagrant ssh control
> cd /vagrant/ansible

Add a new VM

In vagrant-hosts.yml (before the control node!):

- name: srv100
  ip: 172.16.128.100
  netmask: 255.255.0.0

and run vagrant up srv100

The inventory file

# inventory.yml
---
servers:
  vars:
    ansible_user: vagrant
    ansible_become: true
  hosts:
    srv100:
      ansible_host: 172.16.128.100
      ansible_ssh_private_key_file: ../.vagrant/machines/srv100/virtualbox/private_key

Connecting to managed hosts

Try this:

> ansible -i inventory.yml srv100 -m ping
> ansible -i inventory.yml srv100 -m setup

Main playbook

# ansible/site.yml
---

- name: Configure srv100
  hosts: srv100
  tasks:
    - name: Ansible demo
      ansible.builtin.debug:
        msg: "Hello from host {{ ansible_fqdn }}!"

Let’s try out the example playbook!

Running a playbook

[vagrant@control ansible]$ ansible-playbook -i inventory.yml site.yml

PLAY [Configure srv100] *******************************************************************************

TASK [Gathering Facts] *******************************************************************************
ok: [srv100]

TASK [Ansible demo] *******************************************************************************
ok: [srv100] => {
    "msg": "Hello from host srv100!"
}

PLAY RECAP *******************************************************************************
srv100                     : ok=2    changed=0    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Installing a role

> ansible-galaxy install bertvv.rh-base

Add a section roles: to site.yml:

# site.yml
---
- name: Configure srv100
  hosts: srv100
  roles:
    - bertvv.rh-base
  tasks:
    # ...

and run the playbook again.

Play it again, Sam!

After the first run:

PLAY RECAP *******************************************************************************
srv100                     : ok=33   changed=13   unreachable=0    failed=0    skipped=19   rescued=0    ignored=0

After the second one:

PLAY RECAP *******************************************************************************
srv100                     : ok=31   changed=0    unreachable=0    failed=0    skipped=19   rescued=0    ignored=0

Idempotency at work!

Roles: reusable playbooks

• https://galaxy.ansible.com/
• e.g., the rh-base role:
  • Galaxy page: https://galaxy.ansible.com/bertvv/rh-base
  • Github: https://github.com/bertvv/ansible-role-rh-base

Role behaviour can be changed by setting (role) variables. See the README!

Initialising variables

• In the playbook
• host_vars/srv001.yml
• group_vars/servers.yml
• group_vars/all.yml
• …

# ansible/group_vars/servers.yml
---
rhbase_install_packages:
  - bind-utils
  - tree

That’s enough for now!

Resources

• Ansible documentation
• Ansible directory layout
• Recommended books:
  • Geerling, J. (2020) Ansible for Devops
  • Sesto, V. (2021) Practical Ansible

Time to get started!

• Continue with the lab assignment
