Before we begin

Set up the test environment

$ cd elnx-syllabus/demo
$ vagrant up web db
[...]

Agenda

• Bottom-up approach
• Network access (Link) layer
• Internet layer
• Transport
• Application Layer
• SELinux

Interrupt me if you have remarks/questions!

Case: web + db server

Two VirtualBox VMs, set up with Vagrant

• On web, a PHP app runs a query on the db
• db is set up correctly, web is not

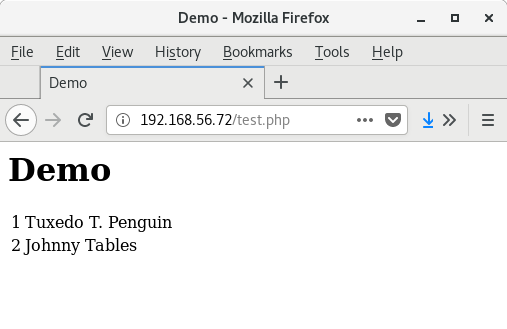

Objective

Test the database server

$ ./query_db.sh
+ mysql --host=192.168.56.73 --user=demo_user \
+   --password=ArfovWap_OwkUfeaf4 demo \
+   '--execute=SELECT * FROM demo_tbl;'
+----+-------------------+
| id | name              |
+----+-------------------+
| 1  | Tuxedo T. Penguin |
| 2  | Bobby Tables      |
+----+-------------------+
+ set +x

Should work from

• physical system (MacOS/Linux and if MySQL/MariaDB client is installed)
• from VMs (/vagrant/query_db.sh)

Use a bottom-up approach

TCP/IP protocol stack

Network Access Layer

• bare metal:
  • test the cable(s)
  • check switch/NIC LEDs
• VM (e.g. VirtualBox):
  • check virtual network adapter type & settings
• ip link

Checklist: Internet Layer

1. Local network configuration
2. Routing within the LAN

Know the expected values!

Checklist: Internet Layer

Checking Local network configuration:

1. IP address: ip a
2. Default gateway: ip r
3. DNS service: /etc/resolv.conf

Local configuration: ip address

• IP address?
• In correct subnet?
• DHCP or fixed IP?
• Check configuration: /etc/sysconfig/network-scripts/ifcfg-*

Example: DHCP

[vagrant@db ~]$ cat /etc/sysconfig/network-scripts/ifcfg-enp0s3
TYPE=Ethernet
BOOTPROTO=dhcp
NAME=enp0s3
DEVICE=enp0s3
ONBOOT=yes
[...]

Example: Static IP

$ cat /etc/sysconfig/network-scripts/ifcfg-enp0s8
BOOTPROTO=none
ONBOOT=yes
IPADDR=192.168.56.73
NETMASK=255.255.255.0
DEVICE=enp0s8
[...]

Common causes (DHCP)

• No IP
  • DHCP unreachable
  • DHCP won’t give an IP
• 169.254.x.x
  • No DHCP offer, “link-local” address
• Unexpected subnet
  • Bad config (fixed IP set?)

Watch the logs: sudo journalctl -f

Common causes (Fixed IP)

• Unexpected subnet
  • Check config
• Correct IP, “network unreachable”
  • Check network mask

Local configuration: ip route

• Default GW present?
• In correct subnet?
• Check network configuration

DNS server: /etc/resolv.conf

• nameserver option present?
• Expected IP?

Checklist: Internet Layer

Checking routing within the LAN:

• Ping between hosts
• Ping default GW/DNS
• Query DNS (dig, nslookup, getent)

LAN connectivity: ping

• physical -> VM: ping 192.168.56.72
• VM -> physical: ping 192.168.56.1
• VM -> GW: ping 10.0.2.2
• VM -> DNS: ping 10.0.2.3

Remark: some routers block ICMP!

LAN connectivity: DNS

• dig icanhazip.com
• nslookup icanhazip.com
• getent ahosts icanhazip.com

LAN connectivity

Next step: routing beyond GW

Checklist: Transport Layer

1. Service running? sudo systemctl status SERVICE
2. Correct port/inteface? sudo ss -tulpn
3. Firewall settings: sudo firewall-cmd --list-all

Is the service running?

systemctl status httpd.service

• active (running) vs. inactive (dead)
  • systemctl start httpd
  • Fail? See below (Application layer)
• Start at boot: enabled vs. disabled
  • systemctl enable httpd

Correct ports/interfaces?

• Use ss (not netstat)
  • TCP service: sudo ss -tlnp
  • UDP service: sudo ss -ulnp
• Correct port number?
  • See /etc/services
• Correct interface?
  • Only loopback?

Firewall settings

sudo firewall-cmd --list-all

• Is the service or port listed?
• Use --add-service if possible
  • Supported: --get-services
• Don’t use both --add-service and --add-port
• Add --permanent
• --reload firewall rules

$ sudo firewall-cmd --add-service=http --permanent
$ sudo firewall-cmd --add-service=https --permanent
$ sudo firewall-cmd --reload

Checklist: Application Layer

• Check the logs: journalctl
• Validate config file syntax
• Use (command line) client tools
  • e.g. curl, smbclient (Samba), dig (DNS), etc.
  • Netcat (ncat, nc)
• Other checks are application dependent
  • Read the reference manuals!

Check the log files

• Either journalctl: journalctl -f -u httpd.service
• Or /var/log/:
  • tail -f /var/log/httpd/error_log

Check config file syntax

• Application dependent, for Apache: apachectl configtest

Read the fine manual!

• RedHat Manuals:
  • System Administrator’s Guide
  • Networking guide
  • SELinux guide
• Reference manuals, e.g.:
  • https://httpd.apache.org/docs/2.4/configuring.html
• Man pages
  • smb.conf(5), dhcpd.conf(5), named.conf(5), …

SELinux

• SELinux is Mandatory Access Control in the Linux kernel
• Settings:
  • Booleans: getsebool, setsebool
  • Contexts, labels: ls -Z, chcon, restorecon
  • Policy modules: sepolicy

Do not disable SELinux

https://stopdisablingselinux.com/

Check file context

• Is the file context as expected?
  • ls -Z /var/www/html
• Set file context to default value
  • sudo restorecon -R /var/www/
• Set file context to specified value
  • sudo chcon -t httpd_sys_content_t test.php

Check booleans

getsebool -a | grep http

• Know the relevant booleans! (RedHat manuals)
• Enable boolean:
  • sudo setsebool -P httpd_can_network_connect_db on

Creating a policy

Let’s try to set DocumentRoot "/vagrant/www"

$ sudo vi /etc/httpd/conf/httpd.conf
$ ls -Z /vagrant/www/
-rw-rw-r--. vagrant vagrant system_u:object_r:vmblock_t:s0   test.php
$ sudo chcon -R -t httpd_sys_content_t /vagrant/www/
chcon: failed to change context of ‘test.php’ to ‘system_u:object_r:httpd_sys_content_t:s0’: Operation not supported
chcon: failed to change context of ‘/vagrant/www/’ to ‘system_u:object_r:httpd_sys_content_t:s0’: Operation not supported

Creating a policy

Instead of setting the files to the expected context, allow httpd to access files with vmblock_t context

1. Allow Apache to run in “permissive” mode:

   $ sudo semanage permissive -a httpd_t

2. Generate “Type Enforcement” file (.te)

   $ sudo audit2allow -a -m httpd-vboxsf > httpd-vboxsf.te

3. If necessary, edit the policy

   $ sudo vi httpd-vboxsf.te

1. Convert to policy module (.pp)

   $ checkmodule -M -m -o httpd-vboxsf.mod httpd-vboxsf.te
   $ semodule_package -o httpd-vboxsf.pp -m httpd-vboxsf.mod

2. Install module

   $ sudo semodule -i httpd-vboxsf.pp

3. Remove permissive domain exception

   $ sudo semanage permissive -d httpd_t

Tip: automate this!

Back up config files before changing

Be systematic, bottom-up

Be thorough, don’t skip steps

Do not assume: test

Know your environment

Know your log files

Read The F*** Error Message!

Open logs in separate terminal

Small steps

Validate the syntax of config files

Reload service after config change

Verify each change

Keep a cheat sheet/checklist

E.g. https://github.com/bertvv/cheat-sheets

Use a configuration management system

Automate tests

E.g. https://github.com/HoGentTIN/elnx-sme/blob/master/test/pu001/lamp.bats

Never ping Google!
